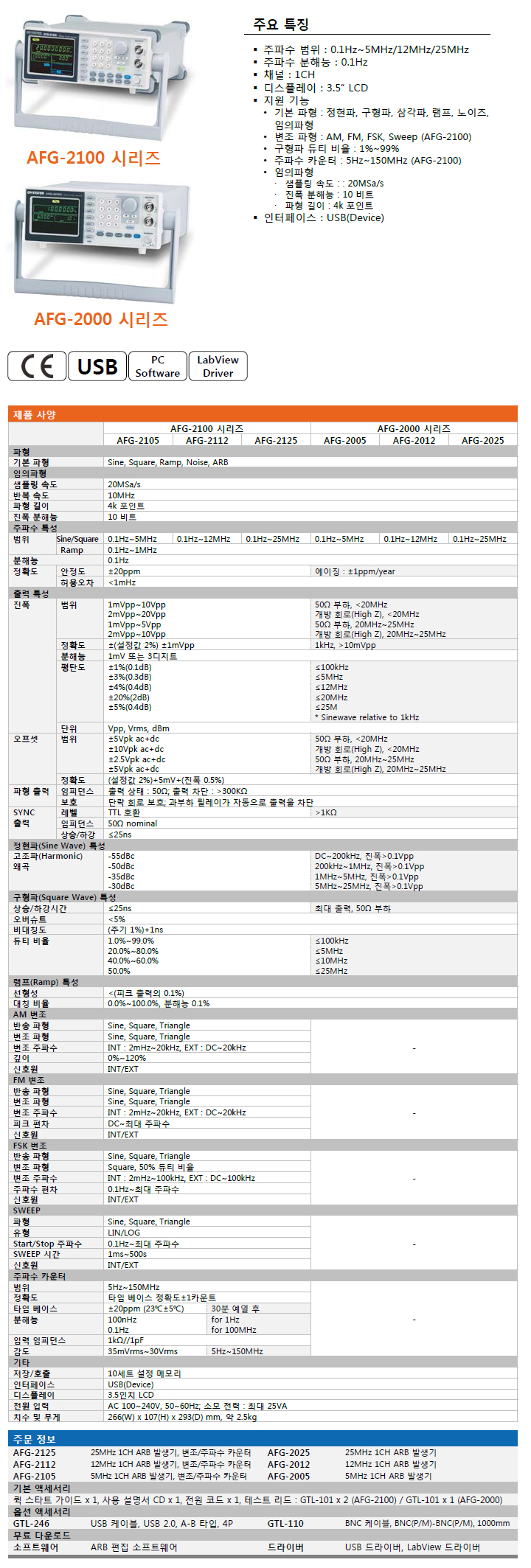

주요 특징

• 0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution

• Sine, Square, Triangular, Noise and Arbitrary Waveform

• 20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform

• 1% ~ 99% adjustable duty cycle for Square Waveform

• Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection

• Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5” LCD Screen Simultaneously

• AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)

• USB Device Interface for Remote Control and Waveform Editing

• PC Arbitrary Waveform Editing Software
