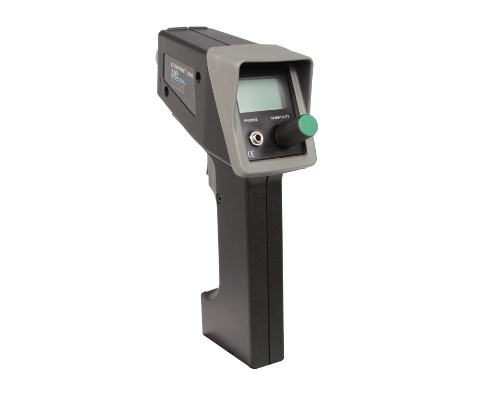

Ultraprobe 3000

  • ITEM Ultraprobe
  • MODEL 3000
  • BRAND UE SYSTEMS
  • 사양 The digital energy conservation tool that fits in the palm of your hand
데이터시트 카달로그 목록보기
  • ●Digital Instrument
  • ●Ideal for Energy Conservation Programs
  • ●Create Compressed Air Leak Surveys
  • ●Inspect Faulty Steam Traps
  • ●Digital data with 400 storage points
  • ●Export data to a Leak Report in Excel
Construction
Hand-held pistol type made with ABS plastic
Circuitry
Solid state analog and SMD digital circuitry with temperature compensation
Frequency Response
Frequency response: 35-45 kHz
Response Time
<10 ms
Display
128×64 Graphic LED with LED backlight
Memory
400 storage locations
Battery
Li Polymer Rechargeable
Operating Temperature
32 °F to 122 °F (0 °C to 50 °C)
Outputs
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Available Probes
Scanning module and stethoscope (contact) module, long range module, RAS MT
Headset
Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards
Indicators
dB, battery status and 16 segment bar graph, sensitivitysetting, record number
Threshold
1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton
aluminum carrying case
15” x 22” x 5” (38.1 x 55.9 x 11.43 cm)
Weight
Pistol Unit: 1 lbs. (0.45 kg)
Carrying Case: 11 lbs. (4.99 kg)
Warranty
1 year standard, 5 years with completed registration form
