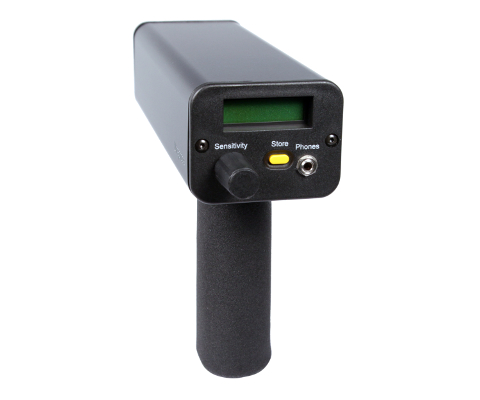

Hand-held pistol type made with coated aluminium and ABS plastic
Circuitry
Solid State SMD Digital Circuitry with temperature compensation
Frequency
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time
<10 ms
Display
16 x 2 LCD with LED Backlight
Memory
400 storage locations
Battery
NiMH Rechargable
Operating Temperature
32 °F to 122 °F (0 °C to 50 °C)
Outputs
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Probes
Trisonic Scanning Module and Stethoscope Module
Headset
Deluxe noise attenuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity
Detects 0.005” (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50 ft. (15.24 m.)
Threshold
1 x 10–2 std. cc/sec to 1 x 10–3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminum carrying case: 18.5” x 14.5” x 6.5” (47 x 37 x 17 cm) Pistol Unit: 2 lbs. (0.9 kg) Complete carrying case: 14 lbs. (6.4 kg)
Weight
2 lbs. (1 kg)
Warranty
1-year parts/labor standard, 5 years with completed warranty registration card
Display Modes
Real Time, Snap Shot, Peak Hold and Storage Display
