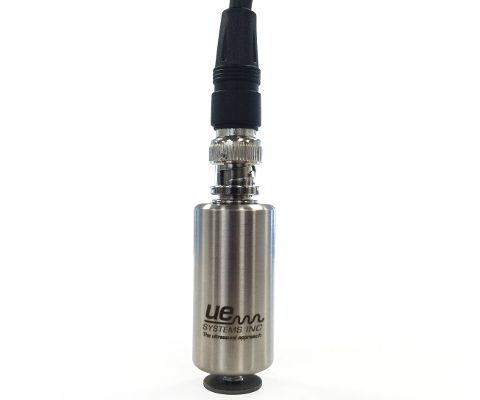

RAS – Remote Access Sensors

  • ITEM Remote Access Sensors
  • MODEL RAS
  • BRAND UE SYSTEMS
  • · 사양 Quickly and easily inspect enclosed or hard-to-reach bearings with UE Systems’ permanent mounted Remote Access Sensors.
데이터시트 카달로그 목록보기
  • ●Easy installation
  • ●Connects to Switch Box
  • ●Quickly inspect up to 8 bearings
  • ●Perfect for hard-to-reach bearings
  • ●Inspect remotely and safely
  • ●Can be connected to the 4Cast system
Remote Access Sensors
Specifications
Transducer
Piezoelectric, stainless steel housing with female BNC connector
Dimensions
Diameter: 1.0″ (2.54 cm); Length: 2.4″ (6.1 cm)
Thread:
(female) 10/32
Cable:
BNC connector, 25 feet (7.5 meter) standard. Can be ordered up to 75 ft. (22 meter)
Preamp:
Electronics are designed to interface with Ultraprobe 9000, 10,000, 15,000 and 401 models only
Frequency Response:
20 kHz – 100kHz
Operating Temp.:
32° – 140°F (0° – 60° C)
Switch Boxes
Specifications
Dimensions:
Height: 4.25 inches (107 mm); Weight: 3.05 lbs (1.38 kg)
Material:
16 gauge, 304 stainless steel
Electrical Connections:
BNC
Inputs:
4 to 8 RAS Sensors, Switchable
Output:
Single RAM (Remote Access Module) Output Connection
Electrical Mounting Isolators:
Included
