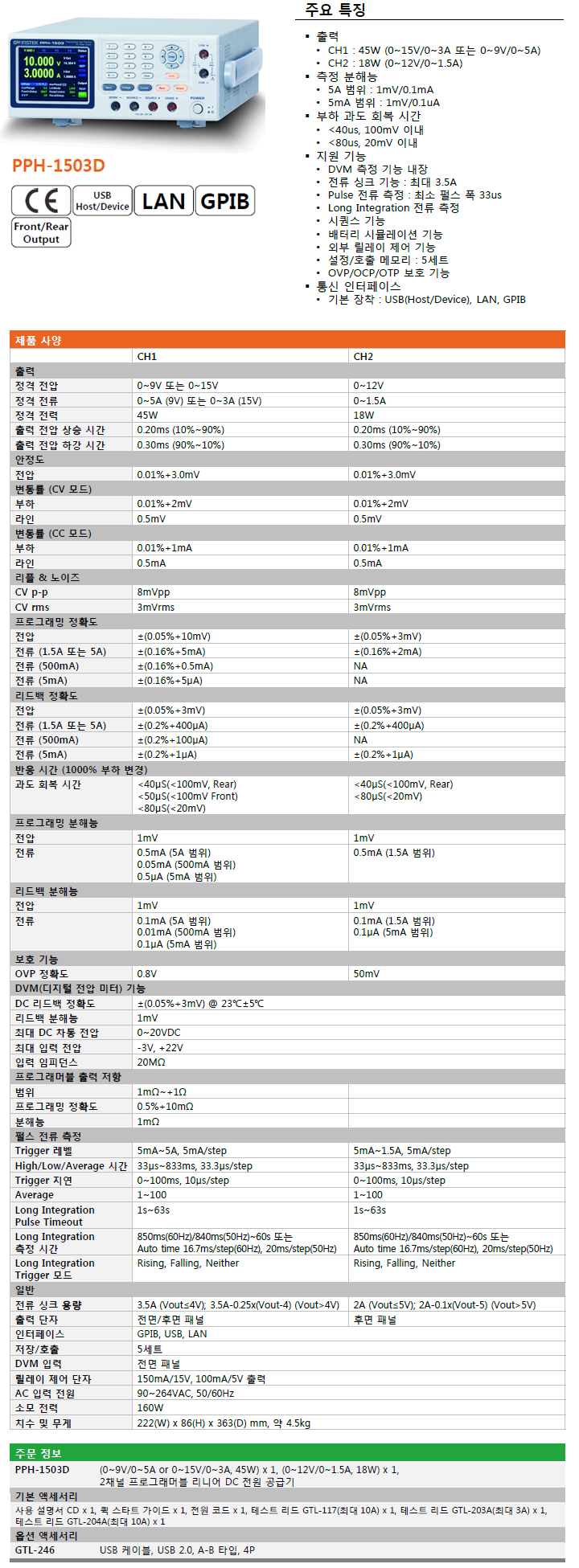

주요 특징 Dual Channel DC Power Output PPH-1503D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~1.5A) PPH-1506D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~3A) PPH-1510D (CH1: 0~15V/0~3A or 0~9V/0~5A, 0~4.5V/0~10A(Rear terminal); CH2: 0~12V/0~3A) 3.5 inch TFT LCD Display Built-in DVM Measurement Function High Measurement Resolution (1mV/0.1μA for 5mA Range) Current Sink Function (Maximum : 3.5A) Pulse Current Measurement Long Integration Current Measurement Sequence Function (Sequential power output) Built-in Battery Simulation Function OVP, OCP, OTP & Temperature Display for Heat Sink Support USB (Device& Host)/GPIB/LAN 5 Groups of Save/Recall Setting External RELAY Control |
